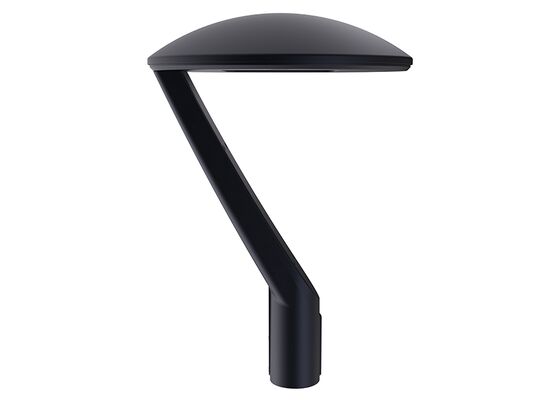

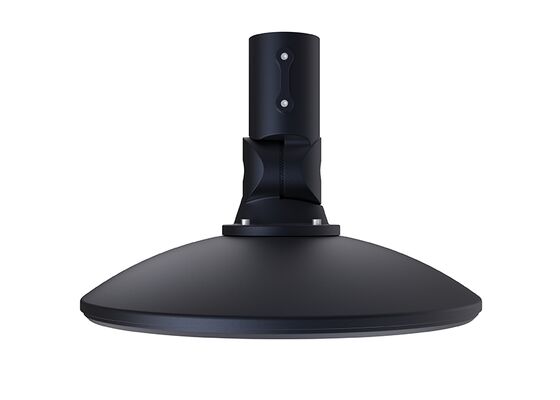

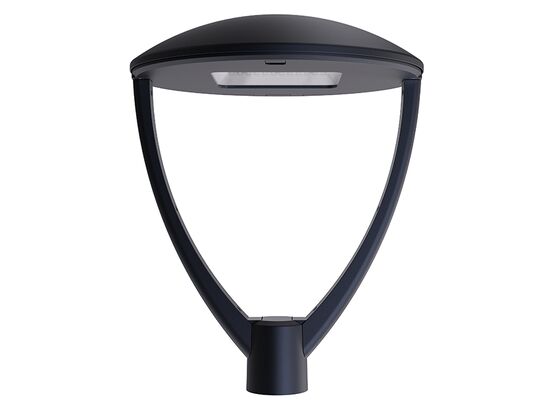

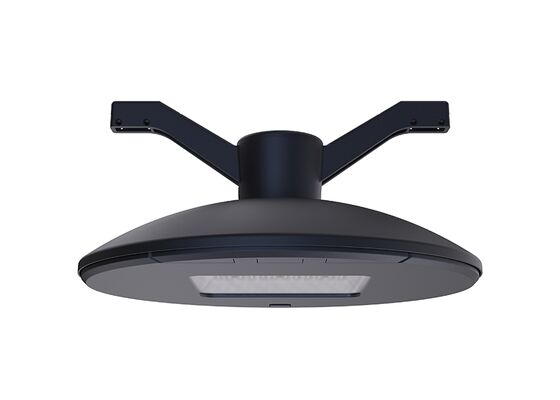

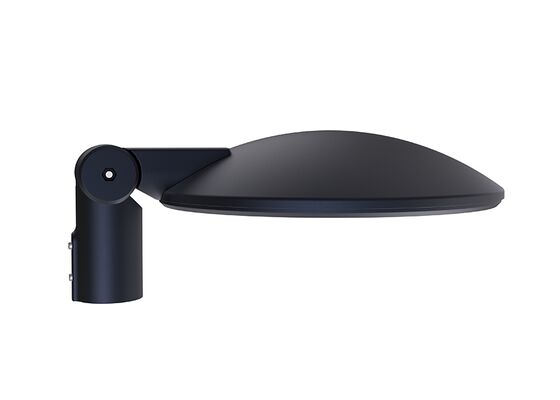

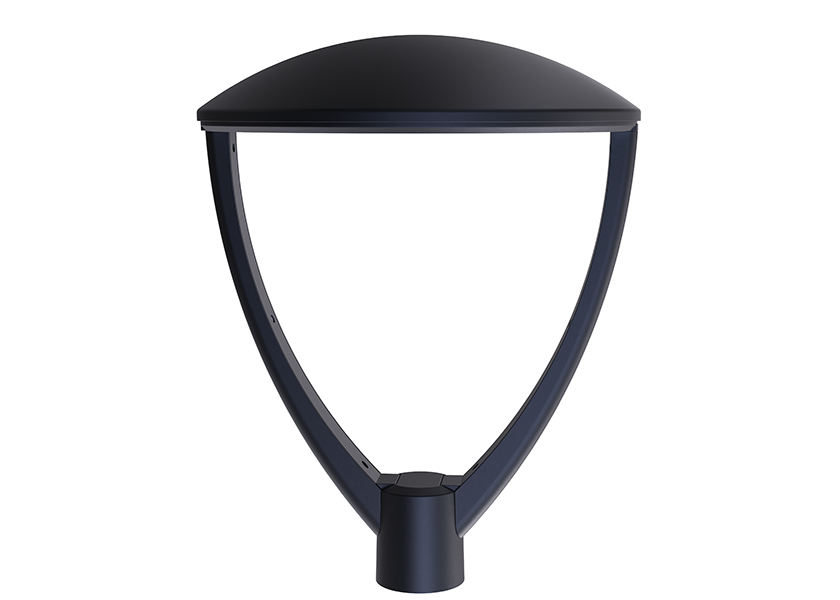

ENEC CB RETILAP SAA SABER CE RoHS Certified 80W CROWN GEN3 LED Street Light DALI Urban Street Light Garden Light INMETRO IP66 Outdoor Tool-free Opening Design

ENEC CB RETILAP SAA SABER CE RoHS Certified 80W CROWN GEN3 LED Street Light DALI Urban Street Light Garden Light IP66 Outdoor

ENEC ENEC+ CB RETILAP CE RoHS Certified 80W CROWN GEN3 LED Street Light Class I Datasheet

ENEC ENEC+ CB RETILAP CE RoHS Certified 80W CROWN GEN3 LED Street Light Class I Features

Zhaga-D4i luminaires, tested for compliance against Zhaga specifications,provide with Zhaga-D4i certificate.

Smart lighting system, DALI-2 / AC dim / Timer dimming.

With 5/7 PIN NEMA socket: 0~10Vdc / PWM / Timer dimming.

TUV ENEC ENEC+ CB SAA CE RETILAP INMETRO RoHS certified.

Smart and modern design, tool-free maintenance, the buckle design on the cover of the lamp enables

you to open the fixture without tools.

Excellent heat dissipation design, sleek appearance design decreases the dust falling on the fixture.

Power-off automatically, built-in power-off protection device, luminaires will automatically and immediately

cut off the power when the luminaries opened, to ensure safety maintenance.

System lumens output up to 170lm/W, powered by Lumileds LUXEON 5050, high efficacy and

superior robustness in a multi-die, high power package, enabling cost-effective system design.

Provide 5/7/10 year warranty, provide standard 5 year warranty, optional 7/10 year warranty for the luminaires.

A variety of drivers are available, such as SOSEN, MOSO, INVENTRONICS,UPOWERTEK, MEAN WELL, TRIDONIC, PHILIPS.

3 pin, 5 pin, 7 pin NEMA socket with photocell sensor or shorting cap, photocell sensor working method:

10LX (sun set/dark) turn on and 50LX (sun rise) turn off automatically, the level could be adjusted according

to customers’ requirement, the lamps operate depends on the ambient luminance, the lamps will lighten

with a suitable illumination automatically when it is dark.

5 pin and 7 pin NEMA socket to extend for the 0-10V dimming or DALI control

DALI control. Luminaries can be controlled by a computer.

0/1-10V dimming. Luminance can be divided into 10 level, set it upon your specific requirements.

Anti-ultraviolet radiation optical PC lens (PMMA lens optional)

Anti-ultraviolet radiation PC optical lens with high light transmittance and secondary light dissipation technology,

optional light distribution curve, available with optics Type II (S/M), Type III (S/M)

No light pollution for residential areas.

Support built-in 10KV / 20KV /40KV SPD (surge protection device), extends the lifetime of the product

while protecting the driver and the luminaires from thunder too.

Adjustable bracket 0°-90°, adjustable bracket for horizontal or vertical installation.

High product reliability by applying 13 steps painting process, high efficiency coating. Paint and

metal parts successfully passed the 500 hours salt spray test.

Optional C5-M marine grade, chromic treatment for the housing, TUV C5-M testing passed.

Cost-effective and efficient lighting solution for a fast return of investment.

ENEC ENEC+ CB RETILAP CE RoHS Certified 80W CROWN GEN3 LED Street Light Class I Dimension Drawing
